rfgen

Periodic Random Field Generation and Analysis

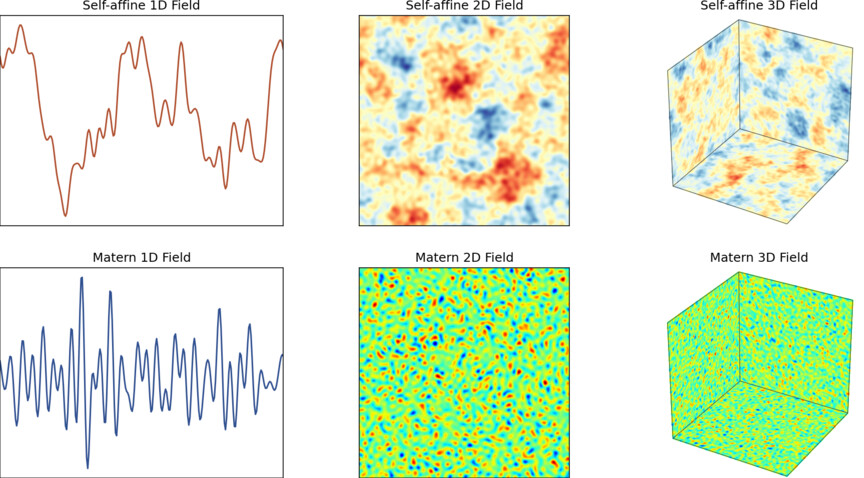

Generate periodic 1D/2D/3D Gaussian and non-Gaussian random fields with prescribed power spectra using Fourier-space filtering and prescribed Height Distribution. Includes tools for spectral analysis, autocorrelation, and statistical moments.

---

Features

• Self-affine (power-law) spectrum — controlled by Hurst exponent $H \in [0, 1]$
• Matérn covariance spectrum — controlled by smoothness parameter $\nu > 0$
• Arbitrary PSD and PDF — Control both power spectrum and amplitude distribution (IAAFT)

• Two generation modes:
  • noise=True: Filtered white noise (spectrum follows target on average)
  • noise=False: Ideal spectrum with random phases (spectrum matches target exactly)
• Analysis tools:
  • Fast FFT-based autocorrelation (1D, 2D, N-D)
  • Power spectral density computation
  • Spectral moments ($m_{00}$, $m_{20}$, $m_{02}$, $m_{40}$, $m_{04}$, etc.)
  • Hurst exponent estimation
  • RMS height, slope, curvature
• Configurable spectral band: $k_{\text{low}}$, $k_{\text{high}}$
• Optional plateau for $k < k_{\text{low}}$

---

Installation

pip install rfgen

With optional dependencies:

pip install rfgen[plot]   # Include matplotlib for visualization
pip install rfgen[all]    # All optional dependencies

---

Quick Start

Generate a self-affine random field

import numpy as np
from rfgen import selfaffine_field

# Random generator seed
rng = np.random.default_rng(42)

# Generate 2D field with Hurst exponent H=0.8
N = 512
field = selfaffine_field(
    dim=2,
    N=N,
    Hurst=0.8,
    k_low=8/N,
    k_high=128/N,
    rng=rng
)

# Normalize to unit standard deviation
field /= np.std(field)

Generate a Matérn random field

from rfgen import matern_field

rng = np.random.default_rng(42)

field = matern_field(
    dim=2,
    N=512,
    nu=1.5,                  # Smoothness parameter
    correlation_length=0.05,
    k_low=0.01,
    k_high=0.25,
    rng=rng
)

Ideal spectrum (no spectral noise)

# Use noise=False for exact power-law spectrum
field_ideal = selfaffine_field(
    dim=2, N=256, Hurst=0.7,
    noise=False,  # Exact spectrum, random phases only
    rng=rng
)

---

API Reference

Generators

selfaffine_field

selfaffine_field(
    dim=2,           # Dimension (1, 2, or 3)
    N=256,           # Grid size per dimension
    Hurst=0.5,       # Hurst exponent ∈ [0, 1]
    k_low=0.03,      # Lower wavenumber cutoff
    k_high=0.3,      # Upper wavenumber cutoff (≤ 0.5 Nyquist)
    plateau=False,   # Flat spectrum for k < k_low
    noise=True,      # True: filtered noise, False: ideal spectrum
    rng=None,        # numpy.random.Generator for reproducibility
    verbose=False    # Print parameters
) -> np.ndarray

Power spectral density: $\Phi(k) \propto |k|^{-(\mathrm{dim} + 2H)}$

matern_field

matern_field(
    dim=2,                    # Dimension (1, 2, or 3)
    N=256,                    # Grid size per dimension
    nu=0.5,                   # Smoothness parameter (ν > 0)
    correlation_length=0.1,   # Correlation length
    sigma=1.0,                # Standard deviation
    k_low=0.03,               # Lower wavenumber cutoff
    k_high=0.3,               # Upper wavenumber cutoff
    noise=True,               # True: filtered noise, False: ideal spectrum
    rng=None,                 # numpy.random.Generator
    verbose=False             # Print parameters
) -> np.ndarray

Power spectral density: $\Phi(k) \propto (a + k^2)^{-(\nu+\mathrm{dim}/2)}$

Special cases for $\nu$:

• $\nu = 0.5$: Exponential covariance (Ornstein-Uhlenbeck)
• $\nu = 1.5$: Once differentiable
• $\nu = 2.5$: Twice differentiable
• $\nu \to \infty$: Squared exponential (Gaussian)

arbitrary_pdf_psd_field

arbitrary_pdf_psd_field(
    dim=2,
    N=256,
    psd_func=my_psd_func,  # Function Φ(k)
    pdf_func=my_pdf_func,  # Function p(z) (optional)
    icdf_func=None,        # Function icdf(u) (optional)
    n_iters=50,            # Number of iterations
    rng=None,
    verbose=False
) -> np.ndarray

Generates a field with a specific power spectral density (PSD) and probability density function (PDF) using an IAAFT-like algorithm.

Analysis Tools

Autocorrelation

from rfgen import autocorrelation_1d, autocorrelation_2d, correlation_length

# Compute autocorrelation
R = autocorrelation_2d(field, normalize=True)

# Estimate correlation length (first zero crossing)
profile = field[N//2, :]
R_1d = autocorrelation_1d(profile)
l_corr = correlation_length(R_1d, threshold=0.0, spacing=1/N)

Power Spectral Density

from rfgen import psd_1d, psd_radial_average, fit_power_law, estimate_hurst_exponent

# 1D PSD
k, psd = psd_1d(profile, spacing=1/N)

# Radially averaged 2D PSD
k, psd = psd_radial_average(field, spacing=1/N)

# Fit power law and estimate Hurst exponent
A, beta, r_squared = fit_power_law(k, psd, k_min=k_low, k_max=k_high)
H_est, r2 = estimate_hurst_exponent(field, k_low=k_low, k_high=k_high, spacing=1/N)

Spectral Moments

from rfgen import spectral_moment, compute_standard_moments, rms_quantities, nayak_parameter

# Individual moment m_ij
m20 = spectral_moment(field, i=2, j=0, spacing=1/N)

# All standard moments
moments = compute_standard_moments(field, spacing=1/N)
# Returns: {'m00', 'm10', 'm01', 'm20', 'm02', 'm11', 'm40', 'm04', 'm22'}

# RMS quantities
rms = rms_quantities(field, spacing=1/N)
# Returns: {'rms_height', 'rms_slope_x', 'rms_slope_y', 'rms_slope',
#           'rms_curvature_x', 'rms_curvature_y', 'rms_curvature'}

# Nayak's bandwidth parameter
alpha = nayak_parameter(field, spacing=1/N)

---

Examples

Example scripts are available in the examples/ directory:

• generation_example.py — Field generation with different spectra
• analysis_example.py — Complete analysis workflow

---

Theory

Self-affine spectrum

The power spectral density follows:

$$\Phi(k) = C \cdot |k/k_0|^{-(\mathrm{dim} + 2H)}$$

where $\mathrm{dim}$ is the dimension and $H$ is the Hurst exponent.

Matérn spectrum

$$S(k) = \frac{\sigma^2 \cdot 2^\mathrm{dim} \cdot \pi^{\mathrm{dim}/2} \cdot \Gamma(\nu + \mathrm{dim}/2) \cdot (2\nu)^\nu}{\Gamma(\nu) \cdot \ell^{2\nu}} \cdot \left(\frac{2\nu}{\ell^2} + 4\pi^2 k^2\right)^{-(\nu + \mathrm{dim}/2)}$$

Generation methods

• Filtered noise (noise=True): White noise in real space is transformed to Fourier space and multiplied by $\sqrt{\Phi(k)}$. The resulting PSD has random fluctuations around the target, see, e.g., [3].

• Ideal spectrum (noise=False): Fourier coefficients are constructed with exact magnitudes $\sqrt{\Phi(k)}$ and random phases. Hermitian symmetry ensures real-valued output, see, e.g. [4].

• Arbitrary PSD and PDF (IAAFT): An iterative algorithm (Iterative Amplitude Adjusted Fourier Transform) [5] alternates between projecting the field onto the target spectral amplitude (in Fourier space) and the target amplitude distribution (in real space). This approach has been adapted for surface generation in contact mechanics to produce surfaces with specific height distributions and power spectra [6].

---

References

[1] Hu, Y.Z.; Tonder, K. (1992). Simulation of 3-D random rough surface by 2-D digital filter and Fourier analysis. Int. J. Mach. Tools Manufact. 32(1-2), 83–90. DOI: 10.1016/0890-6955(92)90064-N

[2] Nayak, P.R. (1971). Random process model of rough surfaces. J. Lubrication Technology 93(3), 398–407.

[3] Yastrebov, V.A.; Anciaux, G.; Molinari, J.F. (2017). The role of the roughness spectral breadth in elastic contact of rough surfaces. J. Mech. Phys. Solids 107, 469–493. DOI: 10.1016/j.jmps.2017.07.016

[4] Müser, M.H., Dapp, W.B., Bugnicourt, R., Sainsot, P., Lesaffre, N., Lubrecht, T.A., Persson, B.N., Harris, K., Bennett, A., Schulze, K., Rohde, S. et al. (2017). Meeting the contact-mechanics challenge. Tribology Letters, 65(4), p.118. DOI: 10.1007/s11249-017-0900-2

[5] Schreiber, T. and Schmitz, A. (1996). Improved surrogate data for nonlinearity tests. Physical review letters, 77(4), p.635. DOI: 10.1103/PhysRevLett.77.635

[6] Pérez-Ràfols, F. and Almqvist, A. (2019). Generating randomly rough surfaces with given height probability distribution and power spectrum. Tribology International, 131, 591–604. DOI: 10.1016/j.triboint.2018.11.020

---

Project Information

• Author: Vladislav A. Yastrebov
• Affiliation: CNRS, Mines Paris - PSL, Centre des Matériaux
• AI usage: Claude Opus 4.5 in Cursor helped considerably in folder organization, testing and deployment, the core code, readme and tests were verified by the author. Usage of ChatGPT 5.1 and of Gemini 3 Pro is also acknowledged.
• License: BSD 3-Clause. See LICENSE for details.
• Repository: github.com/vyastreb/rfgen
• Heritage: This package evolved from SelfAffineSurfaceGenerator, extending the Python implementation with additional analysis tools and broader functionality.
