CSI2532_Devoir#1

Part A [60 points]: E-R Models

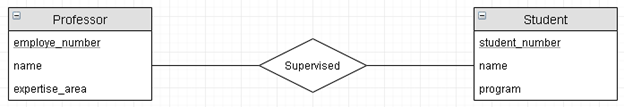

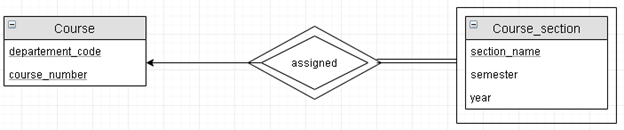

A1 [15 points]: Relations, Cardinality and Participation

a)

b)

c)

A2 [30 points]: System Design

A3 [15 points]: Relational Algebra

Part B [60 points]: SQL

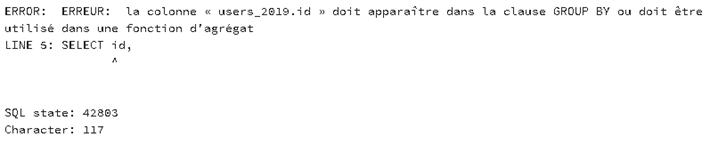

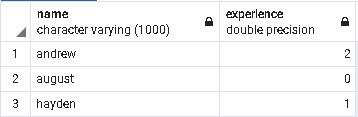

B1. [15 points] Reading SQL Queries

a)

b)

c) (Apres correction)

B2. [15 points] Writing SQL Queries

a)

SELECT name FROM users WHERE join_date < '2020-01-01'

b)

SELECT COUNT(software_name), name FROM licenses
JOIN users ON users.id = user_id
GROUP BY name
ORDER BY count DESC

c)

INSERT INTO licenses (user_id, software_name, access_code)
VALUES
 (50, 'Nord VPN', 'abc127'),
 (49, 'Android studio', 'def459'),
 (50, 'Eclips', 'hij779')

d)

UPDATE softwares
SET version = '51'
WHERE name = 'Sketch';

B3. [30 marks] Updating SQL Schemas

a)

a)	ALTER TABLE licenses
ADD software_version varchar(100);

b)

ALTER TABLE softwares
DROP CONSTRAINT softwares_pkey;

ALTER TABLE softwares
ADD CONSTRAINT PK_softwares PRIMARY KEY (name,version);

c)

ALTER TABLE licenses
DROP CONSTRAINT licenses_pkey;

ALTER TABLE licenses
ADD CONSTRAINT PK_licenses PRIMARY KEY (user_id,software_name,software_version);

d)

UPDATE licenses
SET access_code = '1monthfree'
WHERE software_name = 'Sketch' AND software_version != '52'
